VAF Hi-Flow Sliding Vane

Positive Displacement Flow Meter 150mm-300mm

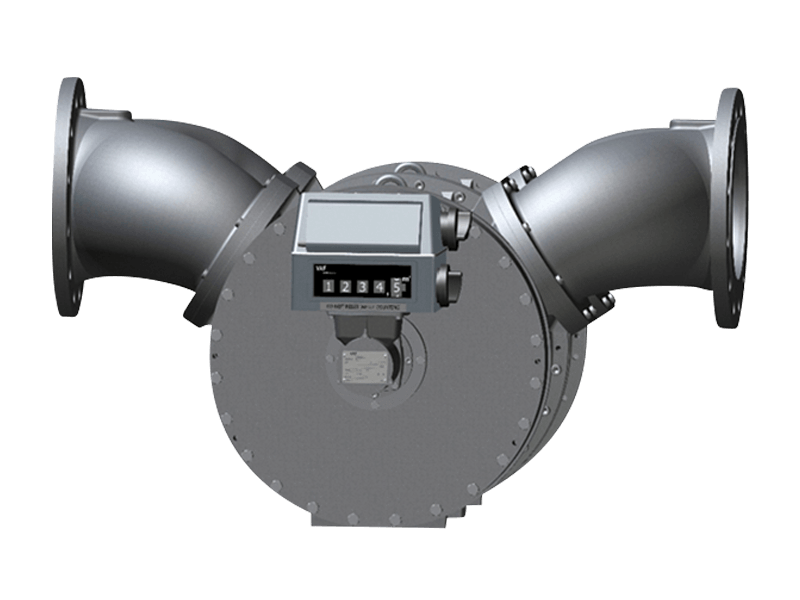

HiFlow Sliding Vane Flow Meters

The HiFlow sliding vane flow meter is manufactured in ductile iron and stainless steel and available from 150mm to 300mm bore sizes to handle flow rates up to 16000 l/min. They offer exceptional accuracy and repeatability, with a low pressure drop. The simple, rugged design of the sliding vane flow meter provides a long service life. All industry standard Veeder-Root registers and ticket printers can be fitted to the HiFlow making it a very versatile meter, and a true work horse. The flowmeter is driven by the process liquid which makes it suitable for locations without power supply. The high accuracy of the flowmeter (down to 0.1% and repeatability 0.05%) is not influenced by process pressure, temperature, mechanical pipe strain or liquid turbulence and therefore straight inlet and outlet pipe diameters are not required.
