Accurate fuel flow measurement for flows up to 4000 L/h
Detect fuel theft and optimize fuel consumption – within 97% of flow range max. inaccuracy is 0.5%
Materials and standards to meet tough marine conditions
Detection of actual working hours
Automatic detection of idling, normal work time and overload modes of engine operation

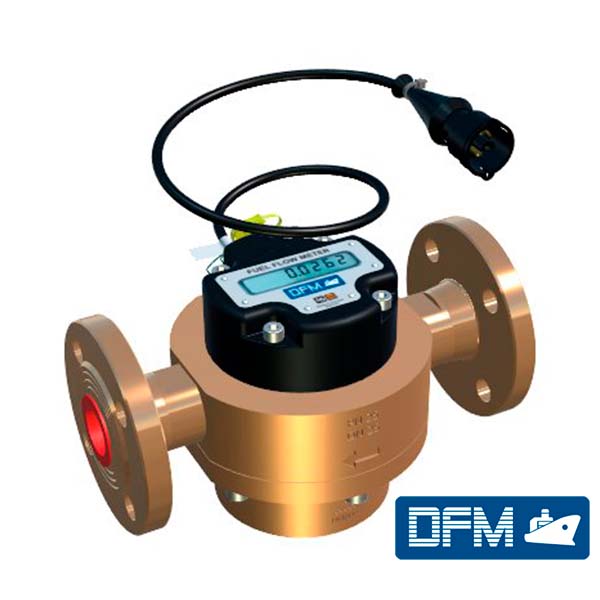

DFM Marine is a precise tool for fuel consumption measurement of maritime transport, locomotives, high-power diesel generators, mining and quarrying machinery, boilers/burners. DFM Marine fuel flow meters can be used within Telematics systems as well as stand-alone autonomous solution. DFM Marine is installed in fuel system of engines/boiler/burner, measures instant fuel consumption per hour and sends outputs signal to vehicle tracking device.
Implemented J1939 protocol allows DFM Marine CAN to be used within S6 Telematics interface together with DUT-E CAN fuel level sensor and other equipment. Telematics device can obtain data via just 1 CAN-port – from up to 8 units DFM Marine CAN and up to 8 units of DUT-E CAN. This option is useful when monitoring fuel of several engines simultaneously (vessels, locomotives, group of gensets, boiling equipment).
Measurement chamber of DFM Marine is made of corrosion-proof metal – brass. Body and thread/flange is made of either brass or duralumin.
