Flowmaster 250 Hydrant Test Flow Meter - Flowquip

Flowmaster 250 Hydrant Test Flow Meter

Hydrant Test Flow Meter

Feature Overview	Flowmaster 250	Flowmaster 250 DL	Flowmaster 250 MK2	Flowmaster DL 250 MK2
Lightweight and Portable	12.5K	12.5K	12.5K	12.5K
Carry Handle	Yes	Yes	Yes	Yes
Adaptors	2.5″ BS Inst. M/F or 2.5″ BSP male thread as standard (Storz, NH also available)	2.5″ BS Inst. M/F or 2.5″ BSP male thread as standard (Storz, NH also available)	BS Instantaneous Male Inlet, BS Instantaneous Female Outlet. (Storz, NH also available)	BS Instantaneous Male Inlet, BS Instantaneous Female Outlet. (Storz, NH also available)
Standard Functions	Flow, Pressure, Volume	Flow, Pressure, Volume	Flow, Pressure, Volume	Flow, Pressure, Volume
Pressure Range	0-25 bar	0-25 bar	0-25 bar	0-25 bar
Operating Range	30-3000 L/min	30-3000 L/min	30-3000 L/min	30-3000 L/Min
Accuracy	30 to 750 lpm ± 15 lpm >750 lpm ± 2%	30 to 750 lpm ± 15 lpm >750 lpm ± 2%	30 to 750 lpm ± 15 lpm >750 lpm ± 2%	30 to 750 lpm ± 15 lpm >750 lpm ± 2%
Display	4-digit backlit LCD display	4-digit backlit LCD display	320 x 240 Backlit Colour Display	320 x 240 Backlit Colour Display
Units of Choice	LPM/GPM	LPM/GPM	LPM, LPS, GPM, m³/h	LPM, LPS, GPM, m³/h
Battery Power Supply	Rechargeable battery, 10 hours operation, 12 VDC, 2.2 Ah	Rechargeable battery, 10 hours operation, 12 VDC, 2.2 Ah	Rechargeable battery, 10 hours operation, 12 VDC, 2.2 Ah	Rechargeable battery, 10 hours operation, 12 VDC, 2.2 Ah
Internal Data Logger & FMS Software	No	Yes	No	Yes
Bluetooth and App	No	No	No	Yes

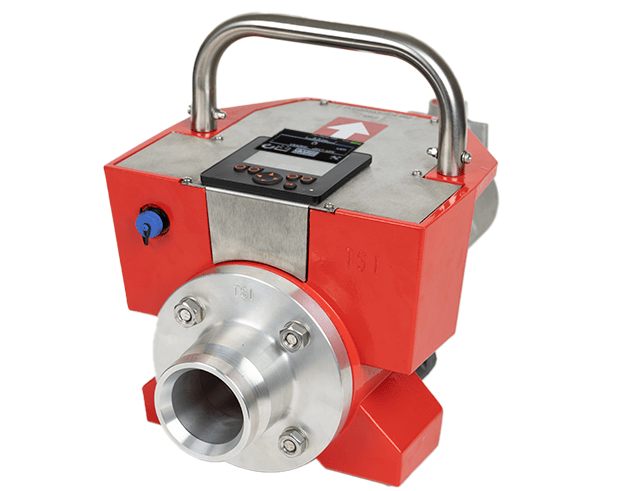

The Flowmaster 250DL MK2 Hydrant Test Flow Meter provides the most reliable and accurate flow and pressure measurements every water drawing off point, producing verifiable reports. Invaluable for hydrant testing, pump testing, flushing and water main condition testing.

Measures flow rates up to 800 USGPM / 3,000lpm and pressures up to 350 PSI / 25 bar. The electro-magnetic sensor has no moving parts – measurement is not affected by debris in the water stream.

Should you wish to hire a Hydrant Test Flow Meter, this can be done through our sister company Flowhire Ltd
