F300 Promass Coriolis Flow Meter

  • promass

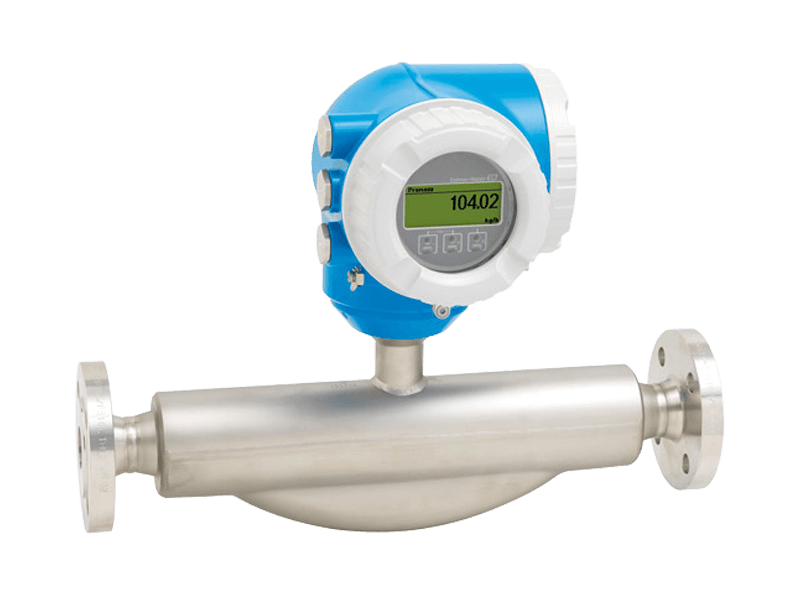

Promass F300

The F300 Promass Coriolis flow meter offers premium accuracy, robustness and a compact, easily accessible transmitter.

The Promass F300 Coriolis flow meter has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and in harsh environments it is suited for the broadest range off application. With its compact transmitter Promass F300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology ensures compliance and process safety at all times.

Measuring principle operates independently of physical fluid properties such as viscosity or density. Highest measurement performance for liquids and gases under varying, demanding process conditions.

Promass Coriolis Mass Flow Meter Device properties

Mass flow: measured error ±0.05 % (PremiumCal)
Medium temperature: -196 to 350 °C (-320 to 662 °F)
Nominal diameter: DN 8 to 250 (3/8 to 10″)
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available

For more information on Flowquip’s Range of Endress + Hauser Coriolis Flow Meters, please click on the link

Should you wish to hire a flow meter, this can be done through our sister company Flowhire www.flowhire.co.uk
