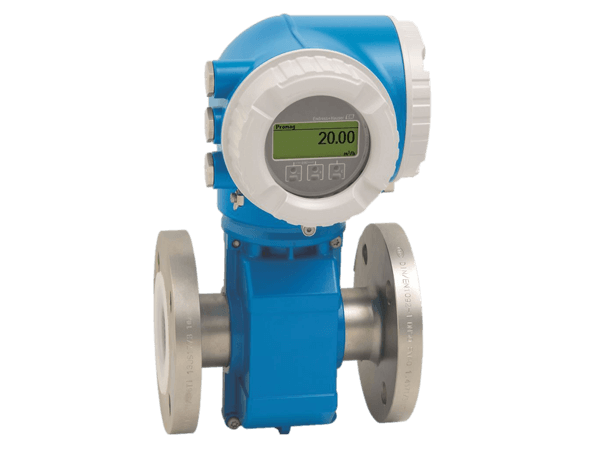

Promag P 300

  • promag p 300

Electromagnetic Flow Meter

Promag P 300 – The flow meter for highest medium temperatures with a compact, easily accessible transmitter.

The Promag P 300 is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter Promag P 300 offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology ensures compliance and process safety at all times.

Field of application
  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Dedicated to chemical and process applications with corrosive liquids and high medium temperatures

Device properties

  • Nominal diameter: max. DN 600 (24″)

  • All common Ex approvals

  • Liner made of PTFE or PFA

  • Compact dual-compartment housing with up to 3 I/Os

  • Backlit display with touch control and WLAN access

  • Remote display available

For more information on Flowquip’s Range of Endress + Hauser Flow Meters, Click Here

Should you wish to hire a Promag P flowmeter this can be done through our sister company Flowhire www.flowhire.co.uk
