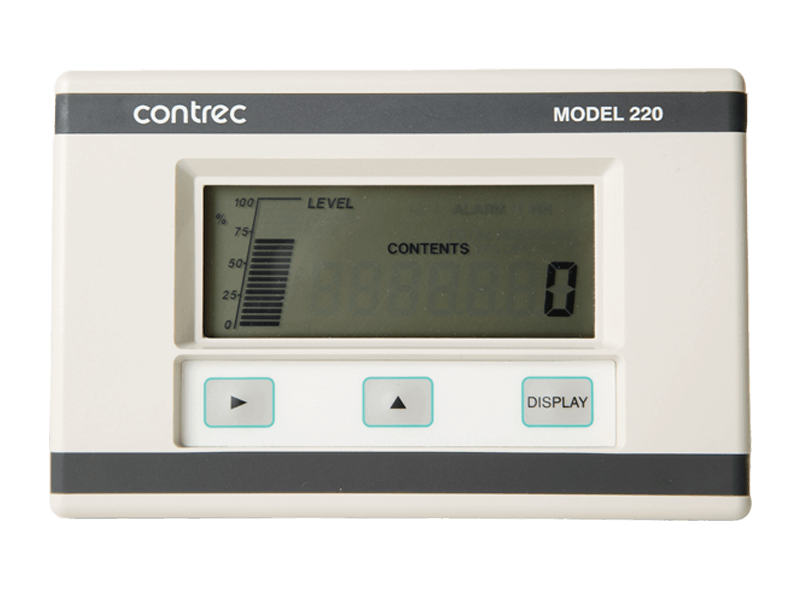

Contrec 220 Level Indicator

ATEX Level and Contents Display

Level Indicator – Model 220

The Contrec Model 220 Level Indicator provides a local display of tank contents. This 220 accepts a 4-20mA signal from a wide range of level sensors, including pressure transmitters, ultrasonic sensors or capacitance probes, and displays both level and tank contents on a large LCD display. Solid state relay outputs provide up to four level alarms and a 25 point non-linearity correction table allows the instrument to be programmed to fit most tanks.

Powered entirely from the 4-20mA current loop the 220 requires no external power supply or batteries.

The instrument is fully programmable with setup parameters such as span, offset, alarm levels, etc, stored in a non-volatile memory which will retain all data for more than 10 years without power.

The Contrec Model 220 is housed in an attractive IP67 (Nema 4X) polycarbonate enclosure which is completely watertight. Supplied with a wall mounting bracket as standard, with a 2″ pipe mounting bracket available as an option or the level indicator can be supplied as a panel mount instrument.

For information on our other level indicators, please click on the link.
