PI 500

  • PI 500

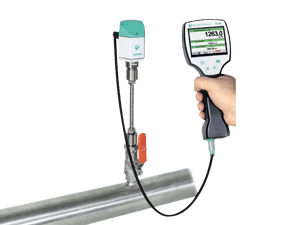

Hand-Held Measuring Instrument

The new PI 500 is an all-purpose handheld measuring instrument for many applications in industry such as:

Flow measurement
Pressure/vacuum measurement
Temperature measurement
Moisture/dew point measurement
The graphic indication of coloured measurement curves is inimitably.
Up to 100 million measured values can be stored with date and name of measuring site. The measured values can be transferred to the computer by means of a USB stick.
The data can be comfortably evalua- ted with the CS Soft Basic software. Measured data and service reports
can be issued easily and quickly. The following sensors can be connected to the freely configurable sensor input of PI 500:

Pressure sensor (high and low pressure)
Flow sensors, VA 400/420
Temperature sensors Pt 100, Pt 1000 / 4…20 mA
Dew point sensors FA 410/FA 415
Effective power meters
Optional third-party sensors with the following signals: 0…1/10 V, 0/4…20 mA, Pt 100, Pt 1000, pul- se, Modbus
