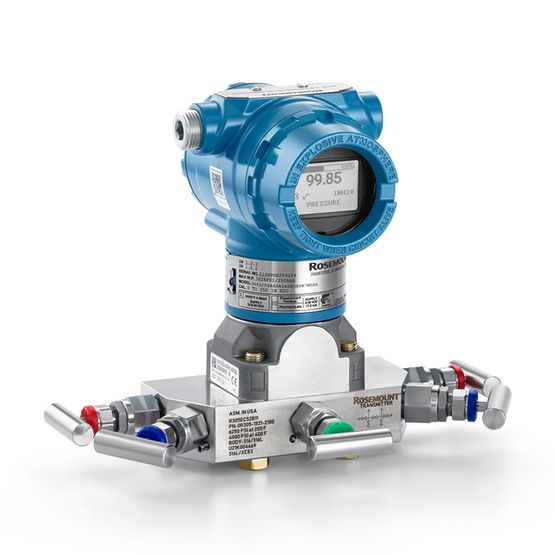

Rosemount Pressure Transmitter 3051 Coplanar™

Pressure Transmitter

The industry-proven Rosemount Pressure Transmitter 3051 with patented Coplanar technology allows for direct mounting in multiple measurement applications. 10-year stability and 150:1 range down produce reliable measurements and wide application flexibility. This Rosemount Pressure Transmitter is available with a graphical, back-lit display, Bluetooth^® connectivity, Flow and Level specific configuration and enhanced software capabilities designed to access the data you need faster than ever before.

Warranty

Up to 5-year limited warranty

Rangedown: Up to 150:1

Communication Protocol: 4-20 MA HART^®, WirelessHART^®, FOUNDATION™ fieldbus, PROFIBUS^® PA, 1-5 V Low Power HART^®

Measurement Range: Up to 2000 psi (137,89 bar) differential
Up to 2000 psig (137,89 bar) gage
Up to 4000 psia (275,79 bar) absolute

Process Wetted Material: 315L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400

Diagnostics: Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics

Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE^®, hazardous location, see full specs for complete list of certifications

Wireless Update Rate: 1 sec. to 60 min., user selectable

Power Module Life: Up to 10-year life, field replaceable (order separately)

Wireless Range: Internal antenna (225 m)

Should you require any further information please email sales@flowquip.co.uk

To see our full range of pressure transmitters, please click here

Features

Patented Rosemount Coplanar technology offers optimized performance as a pressure, Differential Pressure Flow or Differential Pressure Level solution
Application specific configuration allows you to transform your pressure transmitter into a flow meter with a totalizer or a level transmitter with volume calculations
Complete pressure, level, or flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
Quick service buttons offer built-in configuration buttons for streamlined commissioning
SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
